NATO colors and an study paintings on military vehicles.

After much discussion with friends, customers, and manufacturers of paint for modeler.
We decided to do an article on NATO general color, and give particular attention to the other colors used by the French army. Helped by a regiment of material that has generously opened its doors.
First here is the general color chart that will be detailed later in the article:
  1. Colors.
    In France, the army used mainly on these vehicles the "3-tone NATO" (also called "central europe" in France)
    These colors are modeled on the paints on all other vehicles of all other member countries of NATO.
    There are no variations between the French colors, German, Turkish or American.
    The manufacturers different paintings for different armies make their colors according to the same standards for all countries.
    However, each country uses, in additional, different paints for complete the 3 NATO colors.
    In France, there is a old green which is much less used today.
    There is also a sand color that is often completed on the vehicle by the brown color of the "3 tone NATO" to give a camouflage that has spots.
    VAB that came out of the paint shop for a few days (the time that the painting takes its final hue)
    Two examples of truck cab that are in the open air for years
    and whose paintings have suffered much.
    The left has a "3 color NATO" and the right is the old French green.

    Vehicle paint booth ready to be painted.
    It has been sanded and door covers on the parties not to paint.
  2. Reflections (black or beige stripes) between colors.
    There is a strange phenomenon on vehicles that have several colors. Between each color can be observed that track forms spots bands.
    These bands of color often black or sand, is a phenomenon that can be explained by the process of painting vehicles:
    To delineate different areas to paint, painters are a first line with a paint gun. this trait is often with thicker paint and causes a reaction of micro holes. These millions of pinholes cause shade in each hole so that when you look at the vehicle at an angle with the sun, it seems that they are black belts. And if we look from another angle with another toward the sun, we see bands of beige reflections of the sun in the millions of smooth holes.
Variations of printing highlighting on the same door but several angles of view.
You can see the black or beige hues depending on the angle of light.
The millions of small holes between black and green band. The holes of a first coat of paint to spray thick enough.
Example of printing on a UAV  "Crécerelle"
  1. Markings.
    There are two kinds of markings on military vehicles: those that are painted (with magnetic pochoire for example, or painted with Rubber stamps) and marking stickers.
    Bumper Sticker it's just vinyl printed paper in a special way for the recognition and duration in time.
    For paints stencils simply apply the appropriate stencil on the vehicle and paint with desired color.
    But for license plates for example, there is another technique that is the stamps.
    Contrary to what you think the numbers of plates are applied with a silver paint (not white) and rubber stamps.
    Rubber stamps used to make license plates
    Silver paint tube
    Bottom of a rear license plate of a VAB

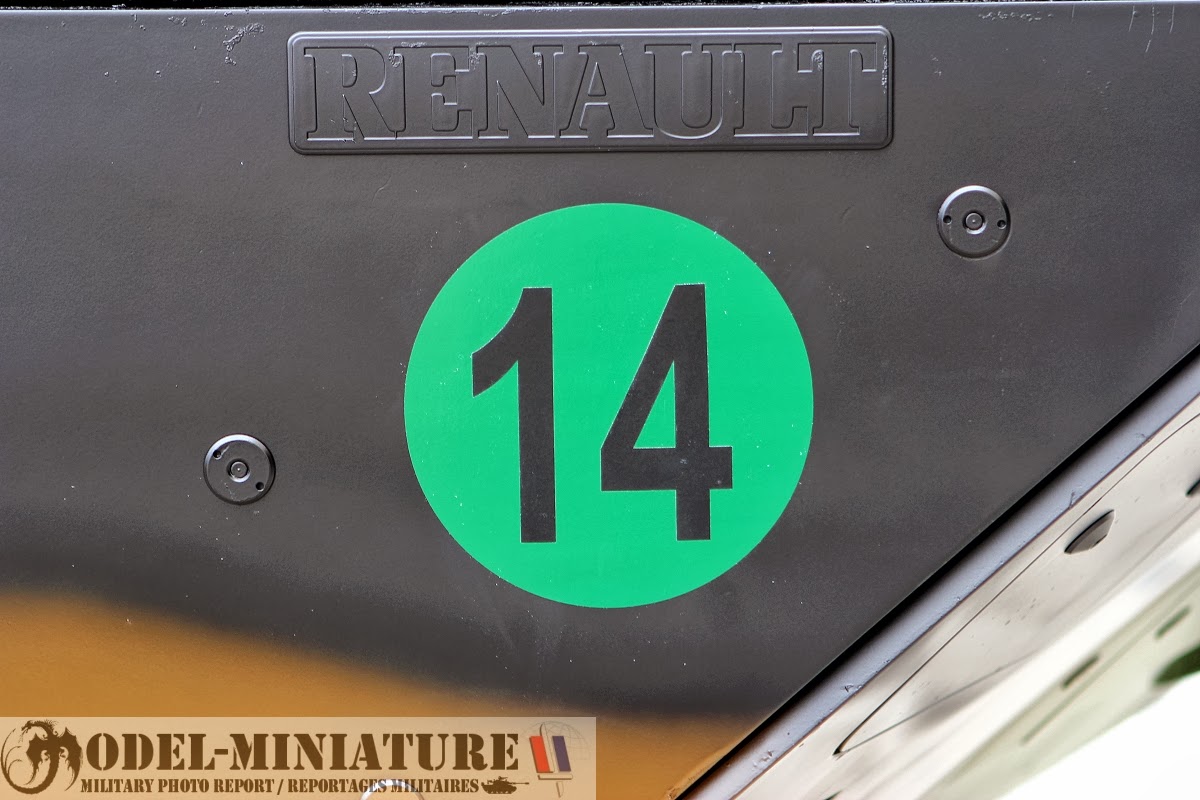

    Vinyl marking on VAB
  2. Fading colors (discolouration).
    Over time, military vehicles are exposed to rain, cold, extreme heat, the sun, and a lot of things that make the paintings eventually change color. Can be seen on vehicles that have their paint for several years color variations very important. Black can turn into blue, yellow sand in gray, green in very pale green, ........

    Example on trailers with different colors and faded colors.
    Example fading of colors on an old truck that has suffered sun and Pluit for several years.
    We see the "NATO black" that turned blue for example.

  3. Color change depending on the angle and the light on an image.
    On the same vehicle (this also works for any object) it is possible that depending on the light, depending on the quality of the camera, the angle of view relative to the sun, it is possible that the pictures the same object have several colors on many different pictures taken yet on the same subject on the same day.
    This is why it is very difficult to judge the real color of vehicle on a simple pics.

    The same VAB but take with the sun in front and the other side with the sun in the back.
  4. Paints for modelers.
    By comparing several brands of paints that produce color "NATO" on outgoing vehicles painting workshop and after drying (as well as samples of paint pot used by the military)
    We determined that the most accurate colors were:
    • Green : Tamiya XF-67
    • Brown : Lifecolor UA-302
    • Black : Lifecolor UA-301

    NATO Brown : LIFECOLOR UA-302

    NATO black : LIFECOLOR UA-301
    NATO green : TAMIYA XF-67
    Many thanks to the regiment of equipment from Woippy for her indispensable helps for the realization of this article.
